1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

Beijing Seigniory NC Equipment Co.Ltd
Contact Now

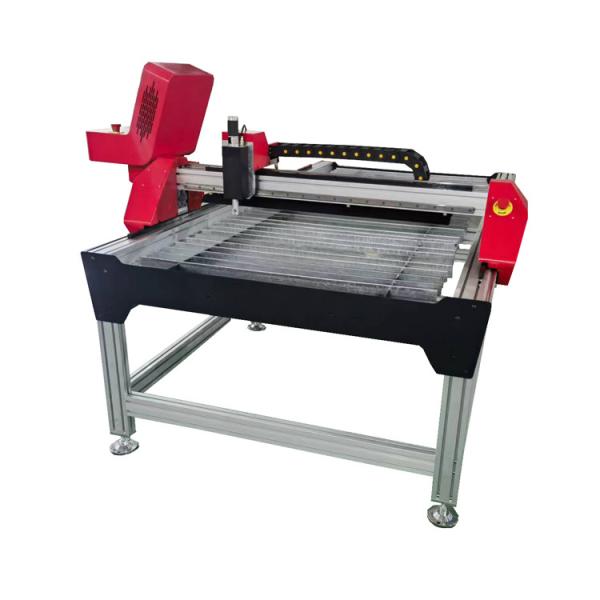

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

Brand Name : SNR

Model Number : SNR-ST-AP

Certification : CE

Place of Origin : Beijing, China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 10-15 work days

Packaging Details : Plywood case

Name : table CNC plasma cutting machine

Machine Voltage : Single phase AC220V,50/60Hz

working area : 1000*2000mm,1500*3000mm, cna be customized

Cutting speed : 0-6000mm/min

Cutting thickness : 1-15mm(plasma)

CNC controller : FANGLING F2100B

Nest Software : FastCAM standard/HiNest/StarCAM

Torch height control : Shanghai Fangling F1621

Cutting mode : Plasma

Rail for beam : Linear rail

Contact Now

1x2 M Table CNC Plasma Cutting Machine for Metal, Carbon Steel, Stainless Steel

Descriptions

Table CNC plasma/flame cutting machine system can cut any flat shape parts composed of straight lines and arcs. The graphic is static and dynamic, easy to learn, can be programmed directly on the machine, or can be drawn on a computer or attached by using a ready-made CAD file. The gifted software is directly converted into a G code program file, and is automatically cut by copying it to the operating system through a USB flash drive. TABLE gantry type double-sided drive structure, exquisite system structure, high degree of automation, simple operation, convenient maintenance, high reliability, easy cutting from sheet metal to large thickness steel plate, the product is widely used in metal sheet cutting in various manufacturing fields. The cutting process can cut carbon steel, stainless steel, alloy steel, aluminum and other non-ferrous metal sheets.

Application

Table type plasma CNC cutter can cut mild steel, high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal, etc.

It is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries.

Product Parameters

Product Name Mini table CNC plasma cutting machine
Effective Cutting size 1000x2000mm, 1500x3000mm
Cutting speed 0-6000mm/min
Cutting thickness 1-15mm(plasma)
CNC controller Fangling F2100B 7.0 INCH
THC Fangling F1621 automatic for plasma
Cutting mode Plasma
Nest software FastCAM/HiNest/StarCAM
Motor Step motor
Rail for Y axis(beam) Linear rail with high precision
Work table common table or water table (optional)
Plasma source HUAYUAN OR MISNCO 100A,120A

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

Company Information

Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.

Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.

Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.

So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

Packaging & Shipping

1x2 M Table Cnc Plasma Cutting Machine For Metal Carbon Steel Stainless Steel

FAQ

Q1: Are you a trading company or manufacturer?

A: we are a professional manufacturer of CNC cutting machine for 14 years.

Q2: Do you accept OEM for customer’s brand?

A: yes, we can do OEM. But we need MOQ for mass production.

Q3: What’s the delivery time?

A: The delivery time depends on machine model and quantity, you can directly contact us for more information.

Q4: What’s the payment terms for a new customer?

A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.

Q5: What kind of package do you use?

A: Plywood case, fumigation-free.

Q6: I know nothing about this machine, what kind of machine i should choose?

A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
